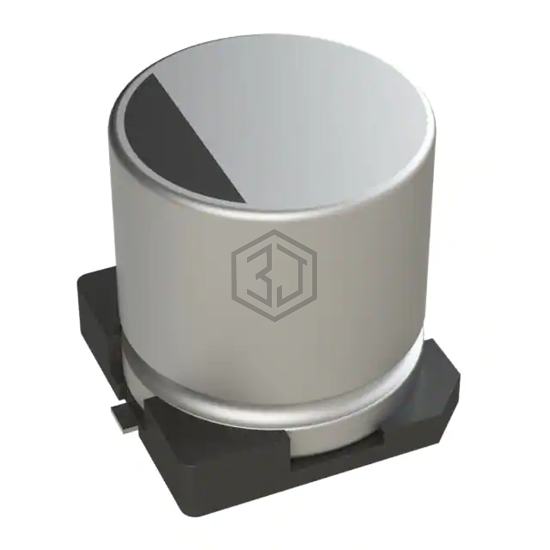

CAP ALUM 220UF 20% 50V SMD
50SGV220M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FP1H221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V SMD | 100% | View |
| ATB227M050 | Cornell Dubilier / Illinois Capacitor | 220UF, 50VDC, 10X10.2MM, SMD | 100% | View |
| UUX1C221MNL6GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 56% | View |
| EEE-FK1E221GL | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 56% | View |
| UCL1A221MCL6GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 56% | View |
| MAL214097601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V SMD | 56% | View |
Submit your RFQ for 50SGV220M10X10.5 and get a quote within 24 hours.
