CAP ALUM POLY 68UF 20% 50V T/H

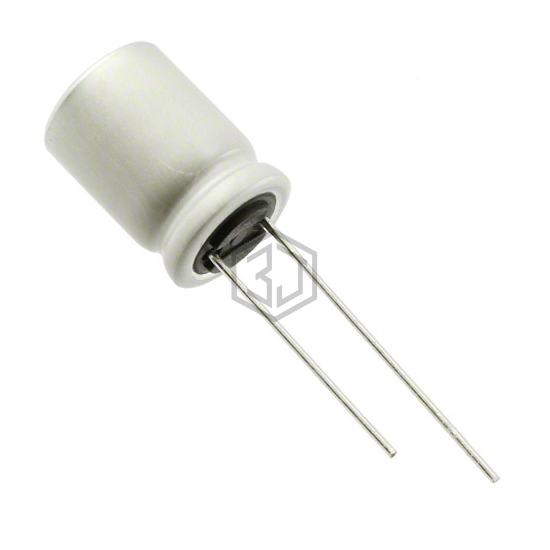

50PZA68M10X13 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 68UF 20% 50V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,446
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
50PZA68M10X13 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLV1H680MDL1 | Nichicon | CAP ALUM POLY 68UF 20% 50V T/H | 100% | View |
| PLV1H680MDL1TD | Nichicon | CAP ALUM POLY 68UF 20% 50V T/H | 100% | View |
| A759MS686M1HAAE032 | KEMET | CAP ALUM POLY 68UF 20% 50V T/H | 94% | View |
| RNU1H680MDN1 | Nichicon | CAP ALUM POLY 68UF 20% 50V T/H | 82% | View |
| 870235674004 | Würth Elektronik | CAP ALUM POLY 68UF 20% 35V T/H | 74% | View |
| RNS1A680MDS1 | Nichicon | CAP ALUM POLY 68UF 20% 10V T/H | 61% | View |
