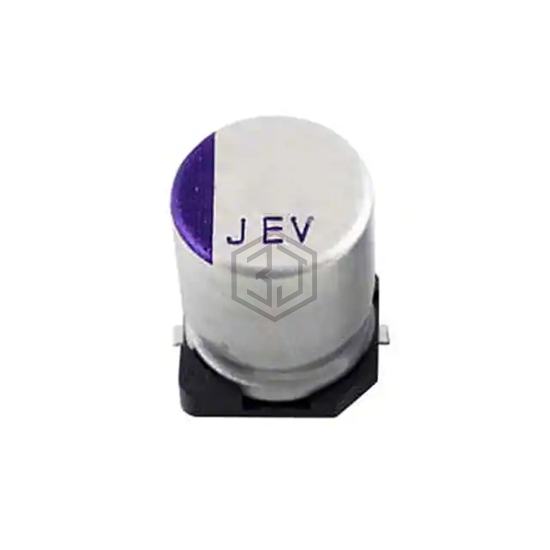

CAP ALUM POLY HYB 100UF 50V SMD
50PEV100M10X10.5 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY HYB 100UF 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RSHVK101M1GEF7002E | Taiyo Yuden | CAP ALUMHYB 100UF 20% 35V SMD | 73% | View |
| GYA1J101MCW1GS | Nichicon | CAP ALUMHYB 100UF 20% 63V SMD | 67% | View |
| HHXD350ARA101MHA0G | United Chemi-Con | CAP ALUM HYBRD 100UF 20% 35V SMD | 66% | View |
| GYD1V101MCW1GS | Nichicon | CAP ALUM POLY HYB 100UF 35V SMD | 63% | View |
| EEH-ZK1E101UV | Panasonic Electronic Components | CAP ALUM POLY HYB 100UF 25V SMD | 53% | View |
| EEH-ZA1E101XV | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 25V SMD | 53% | View |
