CAP ALUM 47UF 20% 500V SNAP

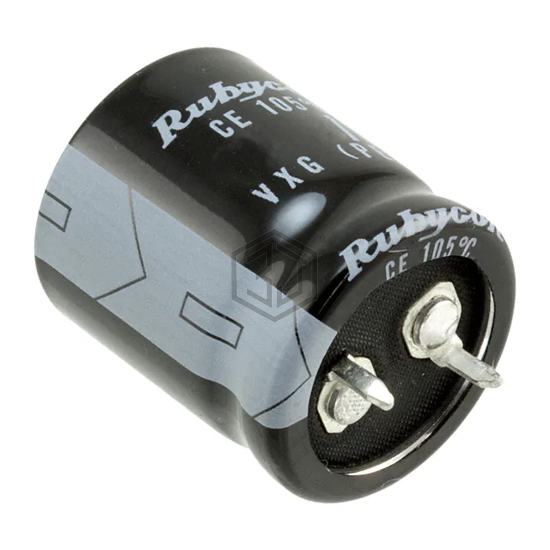

500VXG47MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 8,662
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 580 mA @ 120 Hz |
| Ripple Current @ High Frequency | 812 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKHE451ELL470MK30S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 90% | View |
| PV2H470MNN1825 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 87% | View |
| EPAG451ELL470MK40S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL | 84% | View |
| UCY2G470MHD3 | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 84% | View |
| EKMH401VNN450MP25S | United Chemi-Con | CAP ALUM 45UF 20% 400V SNAP | 82% | View |
| EEU-ED2G470S | Panasonic Electronic Components | CAP ALUM 47UF 20% 400V RADIAL | 79% | View |
Submit your RFQ for 500VXG47MEFCSN22X25 and get a quote within 24 hours.
