CAP ALUM POLY 270UF 20% 4V SMD

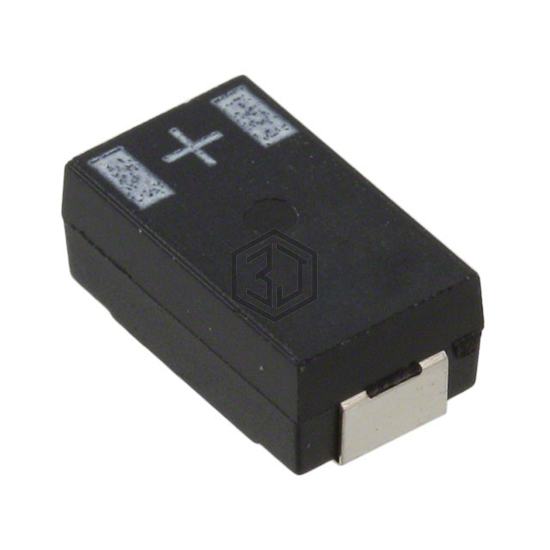

4SW270M is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 270UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case 2917 (7343 Metric).
In Stock: 7,095
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
4SW270M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A700X277M004ATE015 | KEMET | CAP ALUM POLY 270UF 20% 4V SMD | 96% | View |
| 4SW220M | Rubycon | CAP ALUM POLY 220UF 20% 4V SMD | 89% | View |
| RVB0G221MNG | Nichicon | CAP ALUM POLY 220UF 20% 4V SMD | 84% | View |
| EEF-CX0J221R | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 58% | View |
| EEF-LT0E271R | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 2.5V SMD | 56% | View |
| 2SWZ270M1.9X7.3 | Rubycon | CAP ALUM POLY 270UF 20% 2V SMD | 56% | View |
