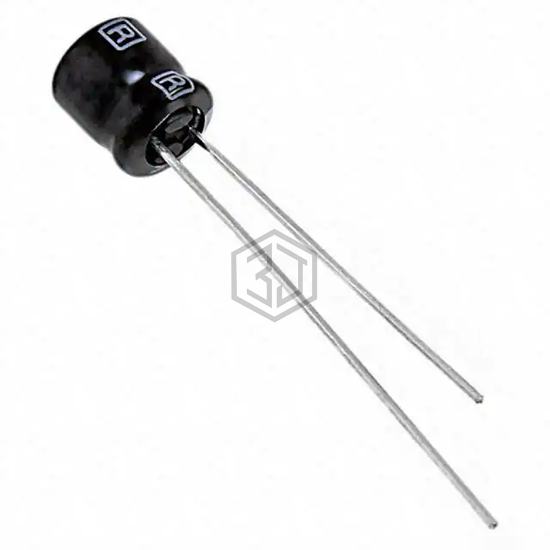

CAP ALUM 100UF 20% 4V RADIAL
4MS5100MEFCT55X5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 4V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 1,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 74.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07BW310X02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% SNAP | 100% | View |
| UMJ0G101MDL | Nichicon | CAP ALUM 100UF 20% 4V RADIAL | 95% | View |
| UPB1C101MED1TA | Nichicon | CAP ALUM 100UF 20% 16V RADIAL | 62% | View |
| UES1A101MPM | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 56% | View |
| VHT100M63 | NTE Electronics, Inc | CAP ALUM 100UF 20% 63V RADIAL | 56% | View |
| 500TXW100MEFR18X45 | Rubycon | CAP ALUM 100UF 20% 500V RAD TH | 56% | View |
Submit your RFQ for 4MS5100MEFCT55X5 and get a quote within 24 hours.
