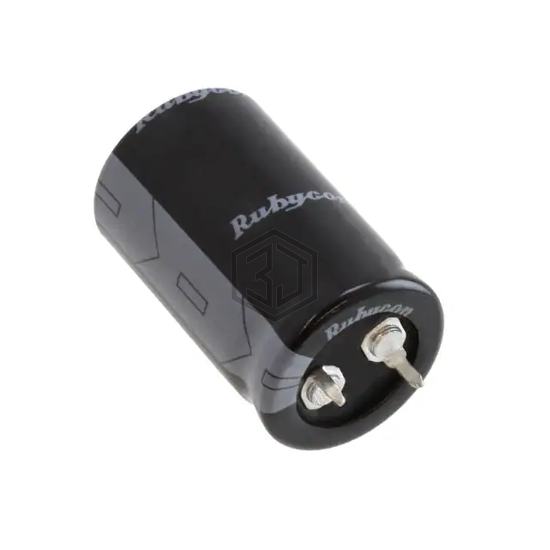

CAP ALUM 820UF 20% 475V SNAP
475MXK820MEFCSN35X60 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 475V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 475 V, package / case Radial, Can - Snap-In.
In Stock: 6,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 475 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.92 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43640A5827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 450V SNAP | 98% | View |
| EKMZ451VSN821MR60S | United Chemi-Con | CAP ALUM 820UF 20% 450V SNAP | 95% | View |
| B43644A9827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 400V SNAP | 91% | View |
| 220MXG820MEFCSN22X50 | Rubycon | CAP ALUM 820UF 20% 220V SNAP | 76% | View |
| LGU2F821MELC | Nichicon | CAP ALUM 820UF 20% 315V SNAP | 76% | View |
| 381LQ821M350A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 350V SNAP | 72% | View |
Submit your RFQ for 475MXK820MEFCSN35X60 and get a quote within 24 hours.
