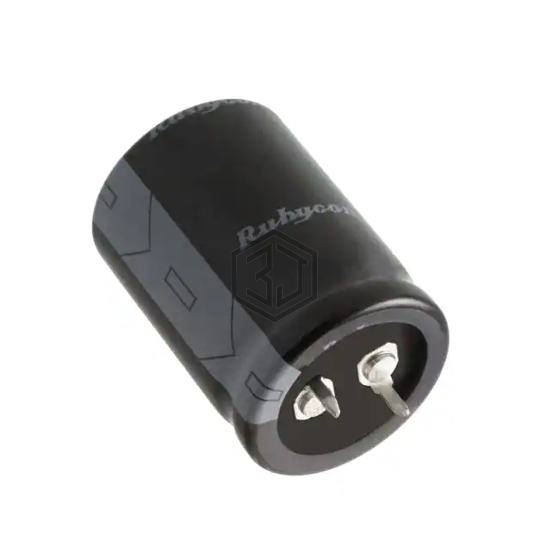

CAP ALUM 120UF 20% 475V SNAP
475MXK120MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 475V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 475 V, package / case Radial, Can - Snap-In.
In Stock: 7,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 475 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.358 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225917121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 450V SNAP | 96% | View |
| PJ2W121MRT1836 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 96% | View |
| 400HXW120MEFR18X25 | Rubycon | CAP ALUM 120UF 20% 400V RADIAL | 90% | View |
| 450HXC120MEFC30X25 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 89% | View |
| 861111483007 | Würth Elektronik | CAP ALUM 120UF 20% 450V SNAP | 87% | View |
| B43252B5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 87% | View |
