CAP ALUM 1200UF 20% 450V RADIAL

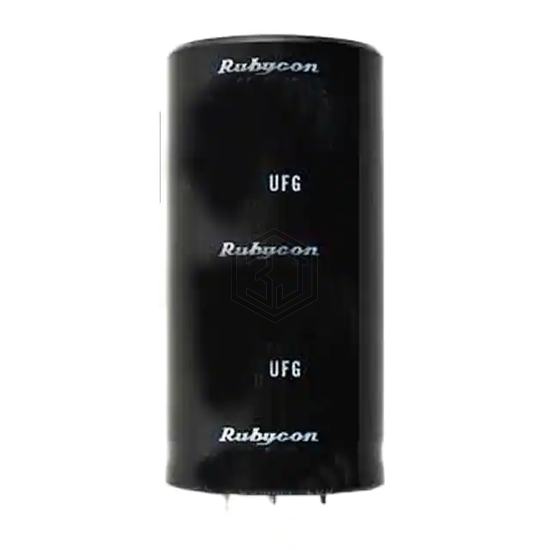

450UFG1200MBN45X65 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.064 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 2.638" (67.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E93E451VND122MAA0U | Chemi-Con | CAP ALUM 450V POLAR | 96% | View |
| E91F351VND122MB65U | United Chemi-Con | CAP ALUM 1200UF 20% 350V SNAP | 79% | View |
| 128LBB250M2EF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1200UF 20% 250V SNAP | 75% | View |
| MAL225963122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 250V SNAP | 58% | View |
| 128LMX200M2EG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1200UF 20% 200V SNAP | 54% | View |
| 380LX122M180K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 180V SNAP | 53% | View |
Submit your RFQ for 450UFG1200MBN45X65 and get a quote within 24 hours.
