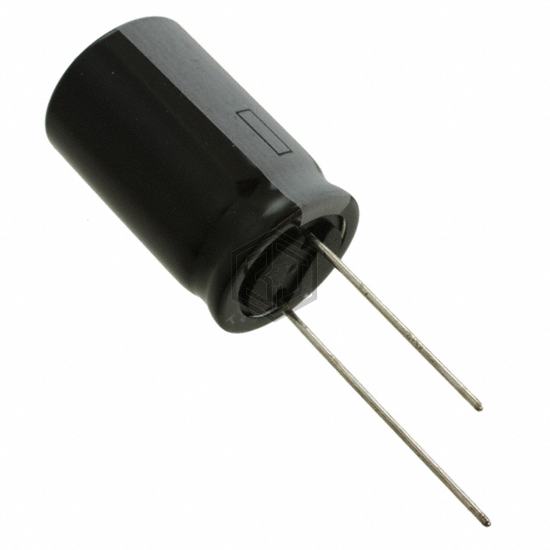

CAP ALUM 47UF 20% 450V RADIAL
450TXW47MEFC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,153
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 440 mA @ 120 Hz |
| Ripple Current @ High Frequency | 660 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
450TXW47MEFC16X25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 476KFM400MRV | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 400V RADIAL | 90% | View |
| EKXJ421ELL470MM20S | United Chemi-Con | CAP ALUM 47UF 20% 420V RADIAL | 82% | View |
| URZ2G470MHD1TN | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 80% | View |
| UBT2A470MPD8TD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 70% | View |
| 476CKH100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 100V RADIAL | 68% | View |
| EKXG161ETD470MJ20S | United Chemi-Con | CAP ALUM 47UF 20% 160V RADIAL | 67% | View |
