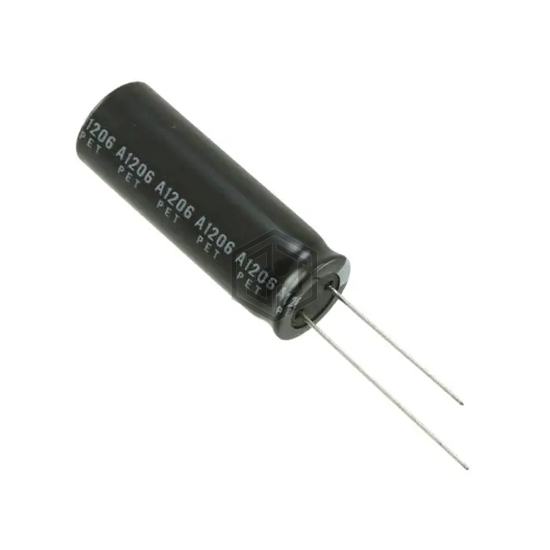

CAP ALUM 56UF 20% 450V RADIAL
450QXW56MEFC12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 56UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,648
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 735 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
450QXW56MEFC12.5X35 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2G560MND9 | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 87% | View |
| THAS600M450AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 60UF 20% 450V FLATPACK | 85% | View |
| 400BXW56MEFR14.5X25 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 84% | View |
| UCY2G560MHD3TN | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 80% | View |
| EKXJ451ELL560MLN3S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL | 79% | View |
| 100ZL56MEFC8X20 | Rubycon | CAP ALUM 56UF 20% 100V RADIAL | 54% | View |
