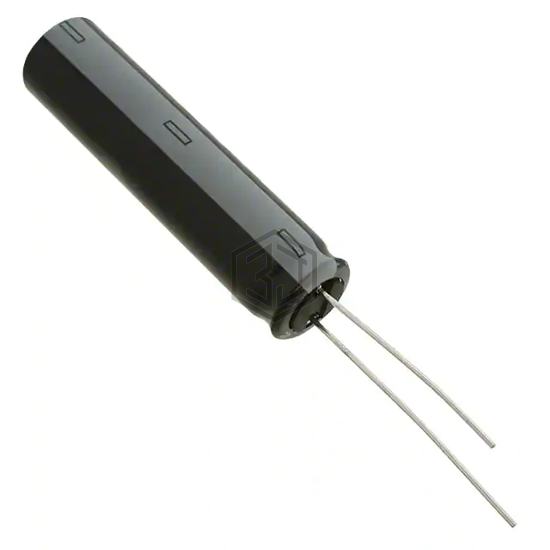

CAP ALUM 27UF 20% 450V RADIAL
450QXW27MEFC10X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 27UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,240
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
450QXW27MEFC10X30 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W270MHD | Nichicon | CAP ALUM 27UF 20% 450V RADIAL | 87% | View |
| EKXF451ELL270ML20S | United Chemi-Con | CAP ALUM 27UF 20% 450V RADIAL TH | 87% | View |
| EKXJ451ELL270MK25S | United Chemi-Con | CAP ALUM 27UF 20% 450V RADIAL | 82% | View |
| EKXJ351ELL270MJ25S | United Chemi-Con | CAP ALUM 27UF 20% 350V RADIAL | 80% | View |
| UCY2E270MPD | Nichicon | CAP ALUM 27UF 20% 250V RADIAL | 75% | View |
| 250BXW27MEFR10X16 | Rubycon | CAP ALUM 27UF 20% 250V RADIAL | 70% | View |
