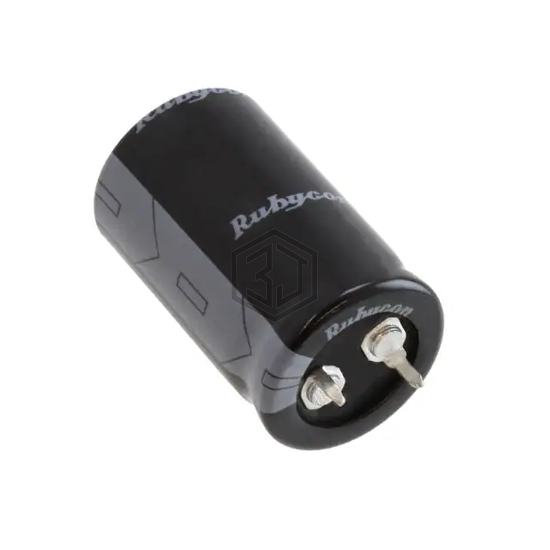

CAP ALUM 390UF 20% 450V SNAP
450MXK390MEFCSN22X60 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,406
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.898 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.441" (62.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505A9397M60 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 92% | View |
| 420HXG390MEFC35X35 | Rubycon | CAP ALUM 390UF 20% 420V SNAP | 90% | View |
| B43544F9397M002 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 89% | View |
| 400VXG390MEFCSN35X35 | Rubycon | CAP ALUM 390UF 20% 400V SNAP | 88% | View |
| EKMQ451VSN391MA40S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 87% | View |
| PL2W391MND3040 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
Submit your RFQ for 450MXK390MEFCSN22X60 and get a quote within 24 hours.
