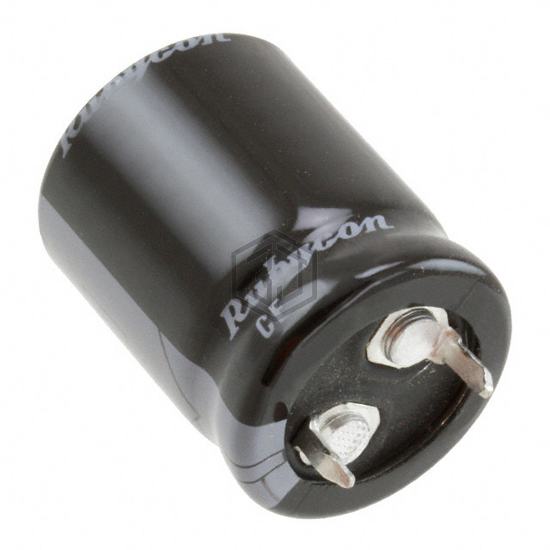

CAP ALUM 47UF 20% 450V SNAP
450MXC47MEFCSN20X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 546 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PW2W470MS31632 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 94% | View |
| MAL205956479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 400V SNAP | 87% | View |
| UCYW6470MHD3 | Nichicon | CAP ALUM 47UF 20% 420V RADIAL | 79% | View |
| MAL215236479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 400V RADIAL | 79% | View |
| EEU-FS2A470LB | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V RADIAL | 76% | View |
| URZ2D470MHD6TN | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 70% | View |
Submit your RFQ for 450MXC47MEFCSN20X25 and get a quote within 24 hours.
