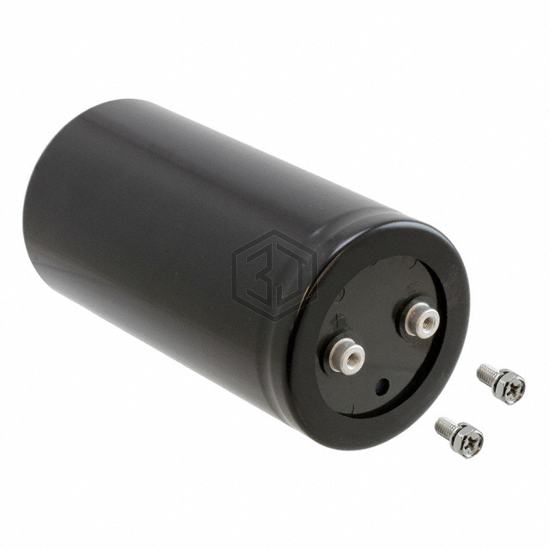

CAP ALUM 5600UF 20% 450V SCREW
450LSU5600MNB77X151 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 5600UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,852
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.36 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43456A5568M003 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 99% | View |
| ALS71C562QM550 | KEMET | CAP ALUM 5600UF 20% 550V SCREW | 93% | View |
| B43455A5568M3 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 91% | View |
| ALS70C562LM350 | KEMET | CAP ALUM 5600UF 20% 350V SCREW | 87% | View |
| B43456A4568M7 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 350V SCREW | 85% | View |
| MAL250075562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 350V SCREW | 82% | View |
Submit your RFQ for 450LSU5600MNB77X151 and get a quote within 24 hours.
