CAP ALUM 3300UF 20% 450V SCREW

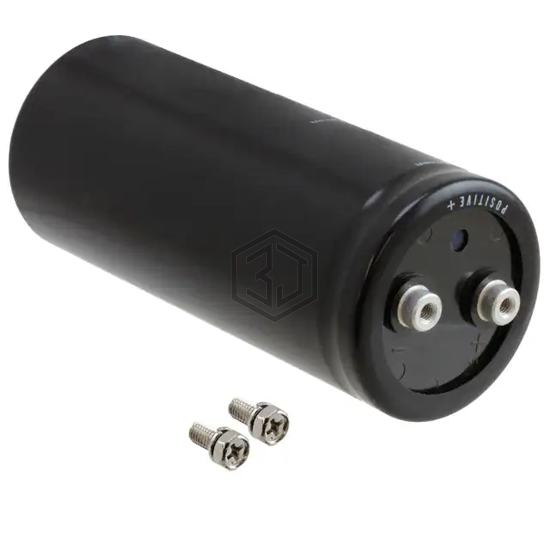

450LSG3300MEFC64X149 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,532
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.46 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 5.984" (152.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D451CDS332MED0M | United Chemi-Con | CAP ALUM 3300UF 20% 450V SCREW | 100% | View |
| LNU2H332MSEHBN | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 87% | View |
| ALS81H332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 84% | View |
| LNT2W332MSEG | Nichicon | CAP ALUM 3300UF 20% 450V SCREW | 70% | View |
| HVMLS332M060EB1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 60V FLATPACK | 57% | View |
| HVMLS332M060EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 60V FLATPACK | 57% | View |
