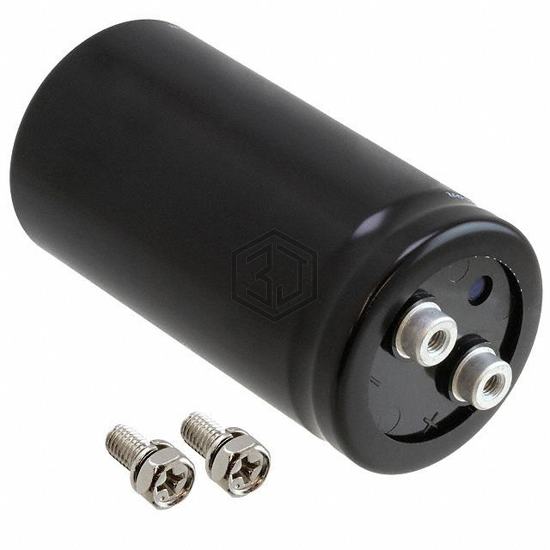

CAP ALUM 1000UF 20% 450V SCREW
450LSG1000MEFC51X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,509
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.02 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.976" (101.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210457102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 94% | View |
| LNT2H102MSEF | Nichicon | CAP ALUM 1000UF 20% 500V SCREW | 90% | View |
| ALS80H102DF450 | KEMET | CAP ALUM 1000UF 20% 450V SCREW | 87% | View |
| MAL210447102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 87% | View |
| LNUN7102MSEF | Nichicon | CAP ALUM 1000UF 20% 525V SCREW | 84% | View |
| LNUN7102MSEFBB | Nichicon | CAP ALUM 1000UF 20% 525V SCREW | 84% | View |
Submit your RFQ for 450LSG1000MEFC51X98 and get a quote within 24 hours.
