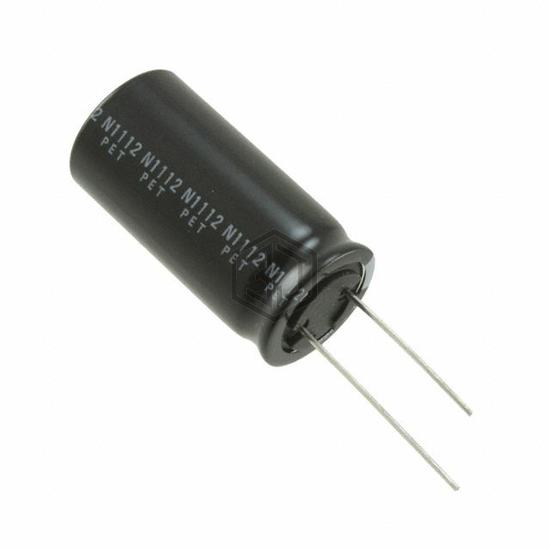

CAP ALUM 100UF 20% 450V RADIAL
450KXW100MEFC18X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,642
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 975 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPH2G101MHD | Nichicon | CAP ALUM 100UF 20% 400V RADIAL | 92% | View |
| 420LXW100MEFR14.5X40 | Rubycon | CAP ALUM 100UF 20% 420V RADIAL | 84% | View |
| 400HXC100MEFCSN22X35 | Rubycon | CAP ALUM 100UF 20% 400V SNAP | 78% | View |
| UCY2V101MHD | Nichicon | CAP ALUM 100UF 20% 350V RADIAL | 74% | View |
| MAL205953101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 250V SNAP | 74% | View |
| EEU-ED2E101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 250V RADIAL | 71% | View |
Submit your RFQ for 450KXW100MEFC18X35 and get a quote within 24 hours.
