CAP ALUM 68UF 20% 450V SNAP

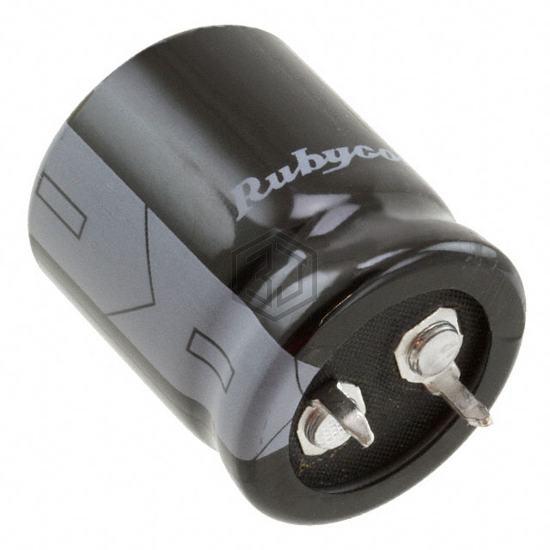

450HXG68MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 68UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.358 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW68MEFR14.5X25 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 75% | View |
| 450MXC68MEFCSN20X35 | Rubycon | CAP ALUM 68UF 20% 450V SNAP | 74% | View |
| MAL205978689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 385V SNAP | 73% | View |
| 450VXR68MEFC25X30 | Rubycon | CAP ALUM 68UF 20% 450V SNAP | 71% | View |
| UPTW6680MHD6 | Nichicon | CAP ALUM 68UF 20% 420V RADIAL | 70% | View |
| UCS2C680MHD1TO | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 64% | View |
Submit your RFQ for 450HXG68MEFCSN22X25 and get a quote within 24 hours.
