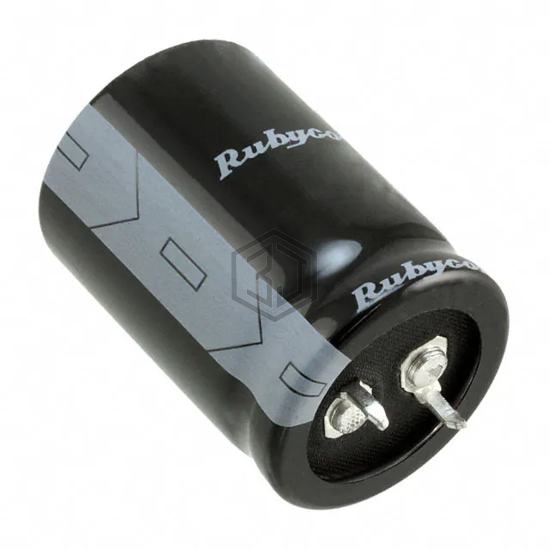

CAP ALUM 82UF 20% 450V SNAP
450HXC82MEFCSN22X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,786
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.134 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXG82MEFCSN20X30 | Rubycon | CAP ALUM 82UF 20% 450V SNAP | 99% | View |
| EKWA421ELL820MU35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 91% | View |
| SLP820M450A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 82UF 20% 450V SNAP | 90% | View |
| EKMM451VSN820MP30S | United Chemi-Con | CAP ALUM 82UF 20% 450V SNAP | 89% | View |
| UPT2W820MHD | Nichicon | CAP ALUM 82UF 20% 450V RADIAL | 85% | View |
| MAL215976829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 400V SNAP | 85% | View |
Submit your RFQ for 450HXC82MEFCSN22X35 and get a quote within 24 hours.
