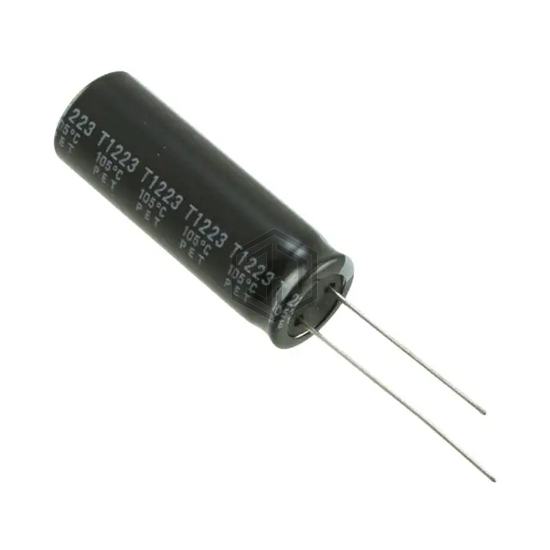

CAP ALUM 47UF 20% 450V RADIAL
450BXW47MEFR12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW47MEFR12.5X30 | Rubycon | CAP ALUM 47UF 20% 400V RADIAL | 93% | View |
| UCS2G470MHD6 | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 91% | View |
| UCY2E470MPD | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | 69% | View |
| 100ZLJ47MT78X16 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 64% | View |
| UCY2D470MPD | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 60% | View |
| EKMG401ELL470MLN3S | United Chemi-Con | CAP ALUM 47UF 20% 400V RADIAL | 57% | View |
Submit your RFQ for 450BXW47MEFR12.5X35 and get a quote within 24 hours.
