CAP ALUM 33UF 20% 450V RADIAL

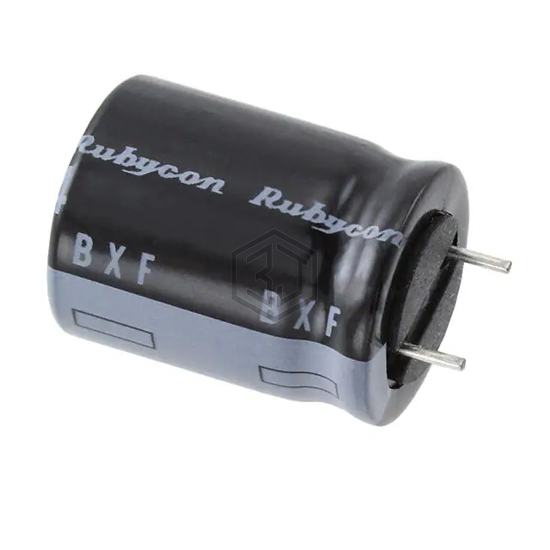

450BXF33MGC16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,996
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 388 mA @ 120 Hz |
| Ripple Current @ High Frequency | 970 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
450BXF33MGC16X20 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXC33MEFCGC16X20 | Rubycon | CAP ALUM 33UF 20% 400V RADIAL | 93% | View |
| 500BXC33MEFCRX16X31.5 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 81% | View |
| VJ2W330MRL1625A6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| UAS2G330MHD1TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 60% | View |
| VHT33M50 | NTE Electronics, Inc | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| 200CFX33MEFC10X20 | Rubycon | CAP ALUM 33UF 20% 200V RADIAL | 53% | View |
