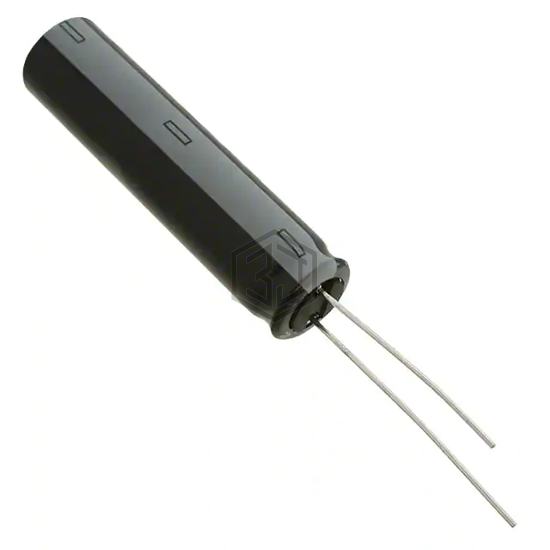

CAP ALUM 15UF 20% 420V RADIAL
420QXW15MEFR8X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 15UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 8,130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400CXW15MEFR8X25 | Rubycon | CAP ALUM 15UF 20% 400V RADIAL | 85% | View |
| ESY156M035AC2AA | KEMET | CAP ALUM 15UF 20% 35V RADIAL | 75% | View |
| UPJ1J150MED1TA | Nichicon | CAP ALUM 15UF 20% 63V RADIAL | 72% | View |
| EKXE161ELL150MJC5S | United Chemi-Con | CAP ALUM 15UF 20% 160V RADIAL TH | 67% | View |
| UCY2H150MHD | Nichicon | CAP ALUM 15UF 20% 500V RADIAL | 59% | View |
| 63ZL15MEFC5X11 | Rubycon | CAP ALUM 15UF 20% 63V RADIAL | 54% | View |
Submit your RFQ for 420QXW15MEFR8X25 and get a quote within 24 hours.
