CAP ALUM 120UF 20% 420V SNAP

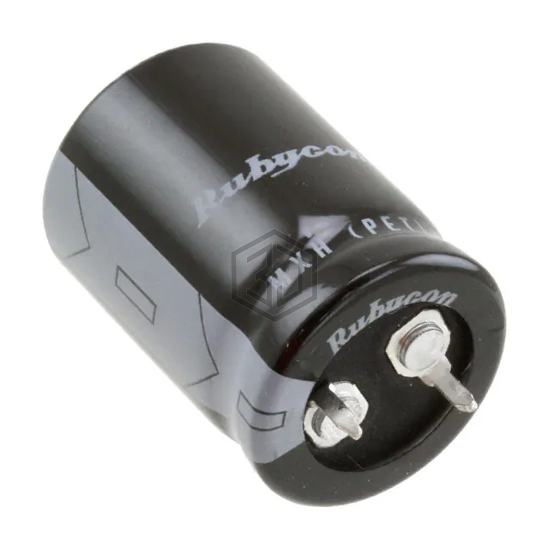

420MXH120MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 980 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.372 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXG120MEFCSN20X35 | Rubycon | CAP ALUM 120UF 20% 400V SNAP | 98% | View |
| MAL225949121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 500V SNAP | 85% | View |
| EKXG351ELL121MMN3S | United Chemi-Con | CAP ALUM 120UF 20% 350V RADIAL | 83% | View |
| EKXJ351ELL121MU45S | United Chemi-Con | CAP ALUM 120UF 20% 350V RADIAL | 83% | View |
| EKMQ351VSN121MP25S | United Chemi-Con | CAP ALUM 120UF 20% 350V SNAP | 82% | View |
| 385MXC120MEFC25X25 | Rubycon | CAP ALUM 120UF 20% 385V SNAP | 82% | View |
Submit your RFQ for 420MXH120MEFCSN22X30 and get a quote within 24 hours.
