CAP ALUM 100UF 20% 420V SNAP

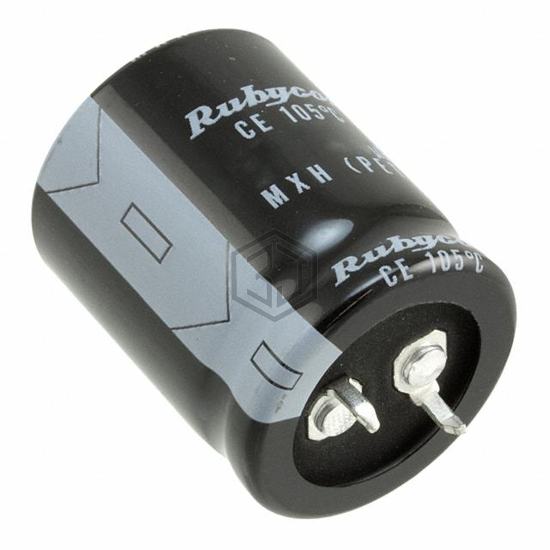

420MXH100MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 4,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW100MEFR14.5X35 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 97% | View |
| 400HXW100MEFR12.5X40 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 97% | View |
| 450HXG100MEFCSN22X35 | Rubycon | CAP ALUM 100UF 20% 450V SNAP | 96% | View |
| ELXS501VSN101MR25S | United Chemi-Con | CAP ALUM 100UF 20% 500V SNAP | 93% | View |
| LQS2G101MELZ25 | Nichicon | CAP ALUM 100UF 20% 400V SNAP | 88% | View |
| 450BXW100MEFR18X30 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 87% | View |
Submit your RFQ for 420MXH100MEFCSN22X25 and get a quote within 24 hours.
