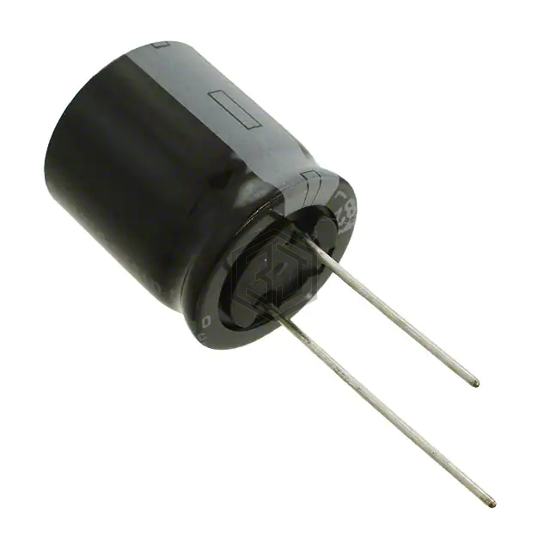

CAP ALUM 47UF 20% 400V RADIAL
400WXA47MEFC18X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 4,192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 309 mA @ 120 Hz |
| Ripple Current @ High Frequency | 463.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAS2G470MHD6TN | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 97% | View |
| PZ2W470MSD1052R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| B41858C9476M008 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 100V RADIAL | 71% | View |
| EKXL421ELL470ML20S | United Chemi-Con | CAP ALUM 47UF 20% 420V RADIAL TH | 70% | View |
| B41866C8476M000 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 63V RADIAL | 61% | View |
| 511D476M063CC4D | Vishay Sprague | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for 400WXA47MEFC18X20 and get a quote within 24 hours.
