CAP ALUM 180UF 20% 400V SNAP

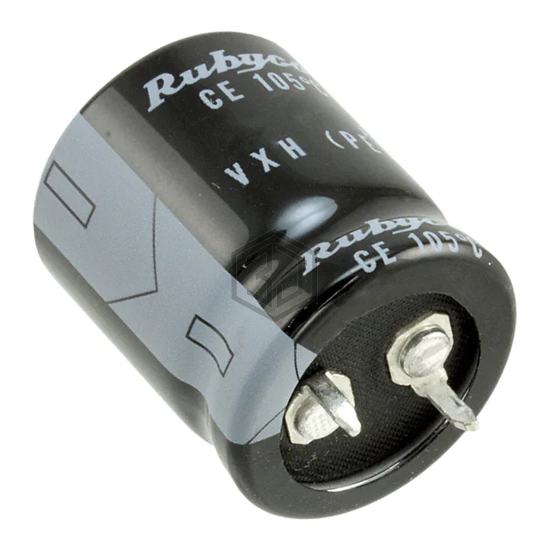

400VXH180MEFCSN25X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.666 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPH2G181MHD | Nichicon | CAP ALUM 180UF 20% 400V RADIAL | 96% | View |
| EKMW451VSN181MP35S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 90% | View |
| 861141484012 | Würth Elektronik | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| LQS2W181MELB30 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 82% | View |
| 315KXF180MEFC35X20 | Rubycon | CAP ALUM 180UF 20% 315V SNAP | 77% | View |
| LAK2G181MELC25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 76% | View |
Submit your RFQ for 400VXH180MEFCSN25X30 and get a quote within 24 hours.
