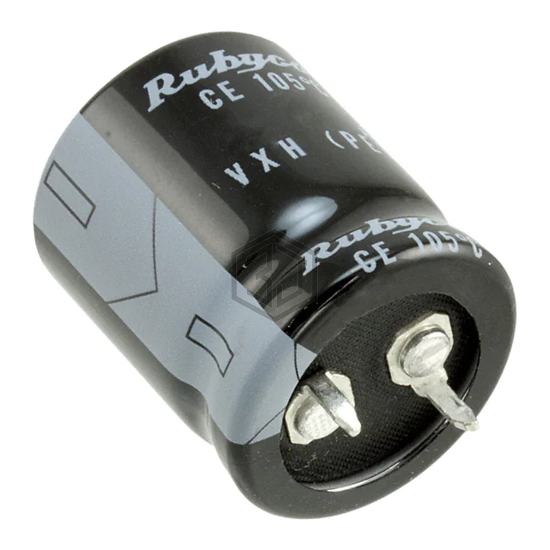

CAP ALUM 120UF 20% 400V SNAP
400VXH120MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,579
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 910 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.274 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKHE401ELL121MMN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 96% | View |
| 381LR121M420J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 420V SNAP | 93% | View |
| 450QXW120MEFR18X31.5 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 92% | View |
| B43504A9127M80 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 91% | View |
| LAR2G121MELZ30 | Nichicon | CAP ALUM 120UF 20% 400V SNAP | 90% | View |
| EPAG451ELL121MM40S | United Chemi-Con | CAP ALUM 120UF 20% 450V RADIAL | 88% | View |
