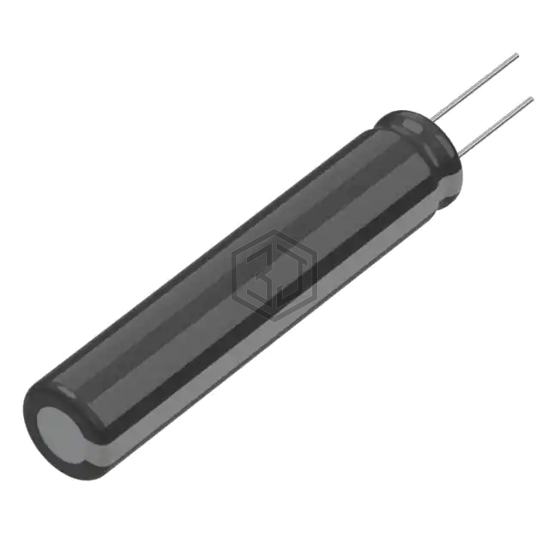

CAP ALUM 56UF 20% 400V RADIAL TH
400TXW56MEFR10X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 56UF 20% 400V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,674
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 780 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKWA451ELL560MK35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 92% | View |
| 420LXW56MEFR12.5X30 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 89% | View |
| 420BXW56MEFR18X20 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 86% | View |
| EKXL421ELL560MJ50S | United Chemi-Con | CAP ALUM 56UF 20% 420V RADIAL TH | 86% | View |
| 350BXW56MEFR16X20 | Rubycon | CAP ALUM 56UF 20% 350V RADIAL | 84% | View |
| UAQ2G560MRD6 | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 78% | View |
Submit your RFQ for 400TXW56MEFR10X50 and get a quote within 24 hours.
