CAP ALUM 2.2UF 20% 400V RADIAL

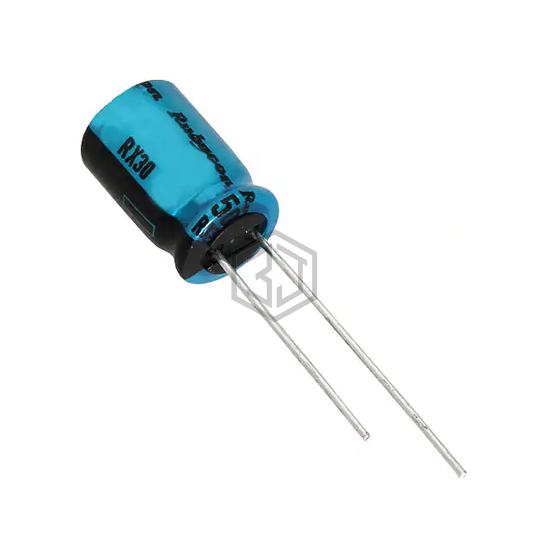

400RX302.2MTA8X11.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 130°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 3,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 130°C |
| Operating Temperature | -25°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 75 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
