CAP ALUM 33UF 20% 400V RADIAL

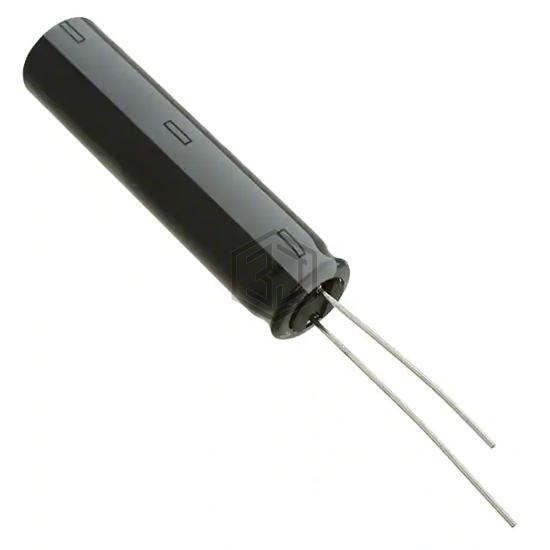

400QXW33MEFR8X45 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 330 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420LXW33MEFR12.5X20 | Rubycon | CAP ALUM 33UF 20% 420V RADIAL | 97% | View |
| UCY2H330MHD3TN | Nichicon | CAP ALUM 33UF 20% 500V RADIAL | 89% | View |
| MAL215236339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 400V RADIAL | 82% | View |
| UCY2E330MPD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 78% | View |
| UCS2E330MHD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 74% | View |
| UCS2D330MPD | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 71% | View |
Submit your RFQ for 400QXW33MEFR8X45 and get a quote within 24 hours.
