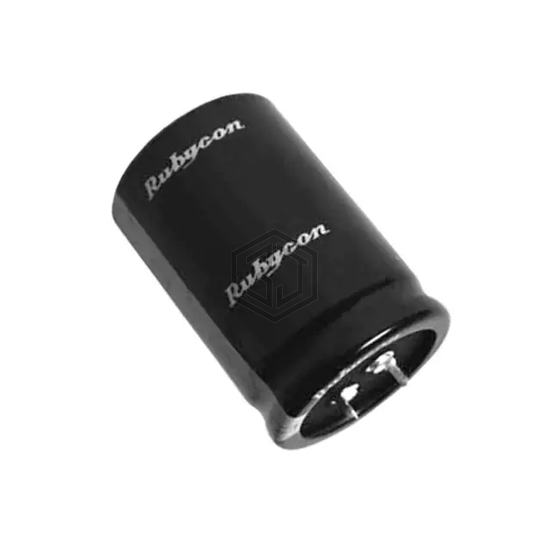

CAP ALUM 180UF 20% 400V SNAP
400MXK180MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,086
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.666 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225966181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 400V SNAP | 98% | View |
| 420MXK180MEFCSN25X25 | Rubycon | CAP ALUM 180UF 20% 420V SNAP | 97% | View |
| 381LR181M420J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 420V SNAP | 96% | View |
| MAL209436181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
| 400SXG180MEFCSN22X40 | Rubycon | CAP ALUM 180UF 20% 400V SNAP | 89% | View |
| LGR2G181MELC25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
