CAP ALUM 560UF 20% 400V SNAP

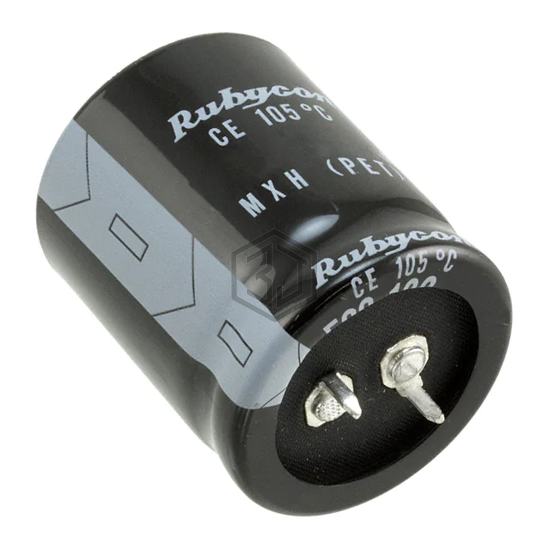

400MXH560MEFCSN35X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,364
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.688 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VNN561MA50U | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 100% | View |
| LGL2G561MELC30 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 94% | View |
| B43504A567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 93% | View |
| 381LR561M400A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 400V SNAP | 90% | View |
| 381LX561M350A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 350V SNAP | 84% | View |
| ELXM251VSN561MQ45S | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 82% | View |
Submit your RFQ for 400MXH560MEFCSN35X35 and get a quote within 24 hours.
