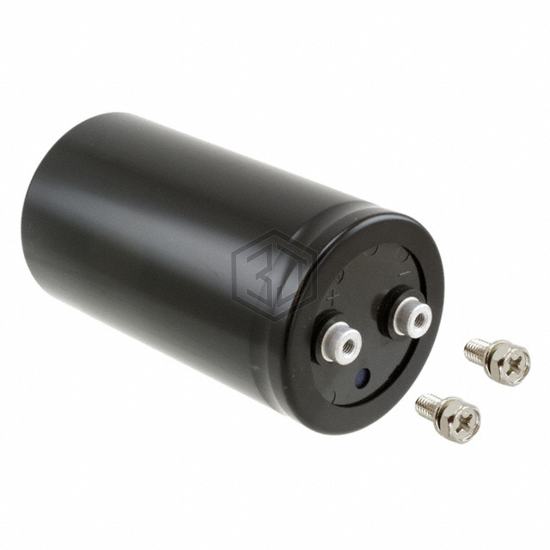

CAP ALUM 2200UF 20% 400V SCREW
400LSW2200MNB64X119 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,828
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 4.803" (122.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
400LSW2200MNB64X119 is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210436222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 400V SCREW | 100% | View |
| ELXR451LGN222MDB5U | United Chemi-Con | CAP ALUM 2200UF 20% 450V SCREW | 92% | View |
| MAL210435222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 350V SCREW | 91% | View |
| LNUN7222MSEHBB | Nichicon | CAP ALUM 2200UF 20% 525V SCREW | 83% | View |
| 550C222T250EC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 250V SCREW | 70% | View |
| CGR222T075R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 75V SCREW | 56% | View |
Submit your RFQ for 400LSW2200MNB64X119 and get a quote within 24 hours.
