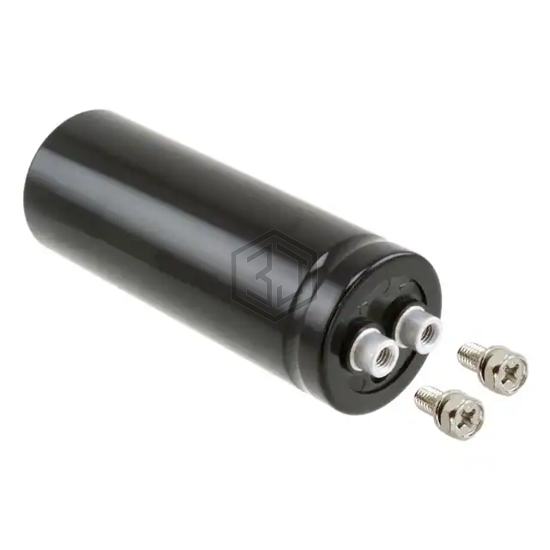

CAP ALUM 820UF 20% 400V SCREW
400LSQ820MEFC36X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.012 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 3.976" (101.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 550C811T400BB2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 810UF 400V SCREW | 99% | View |
| CGS811T400R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 810UF 400V SCREW | 94% | View |
| LQR2V821MSECBN | Nichicon | CAP ALUM 820UF 20% 350V SCREW | 92% | View |
| LQR2G821MSECBN | Nichicon | CAP ALUM 820UF 20% 400V SCREW | 87% | View |
| LQR2W821MSECBB | Nichicon | CAP ALUM 820UF 20% 450V SCREW | 86% | View |
| CGS811T300R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 810UF 300V SCREW | 85% | View |
