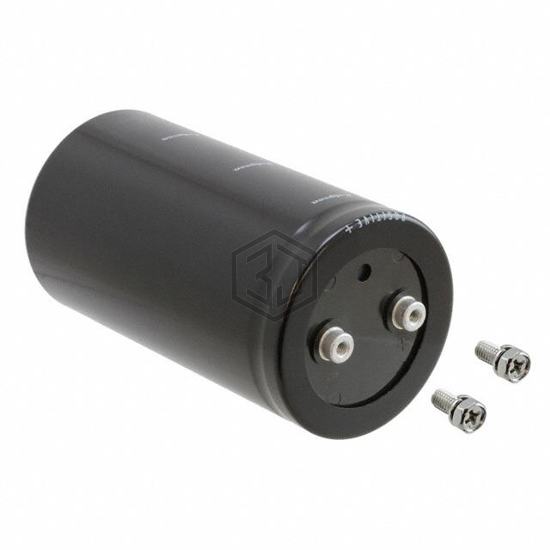

CAP ALUM 6800UF 20% 400V SCREW
400LSQ6800MNB77X151 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,446
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.65 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
400LSQ6800MNB77X151 is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNX2G682MSEJBB | Nichicon | CAP ALUM 6800UF 20% 400V SCREW | 96% | View |
| E36D451HPN682MEE3U | United Chemi-Con | CAP ALUM 6800UF 20% 450V SCREW | 92% | View |
| E37X421CPN682MFB7U | United Chemi-Con | CAP ALUM 6800UF 20% 420V SCREW | 92% | View |
| ALS30A682NT500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 86% | View |
| B43455A4688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 350V SCREW | 84% | View |
| E32D630LPS682MC48U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SCREW | 56% | View |
