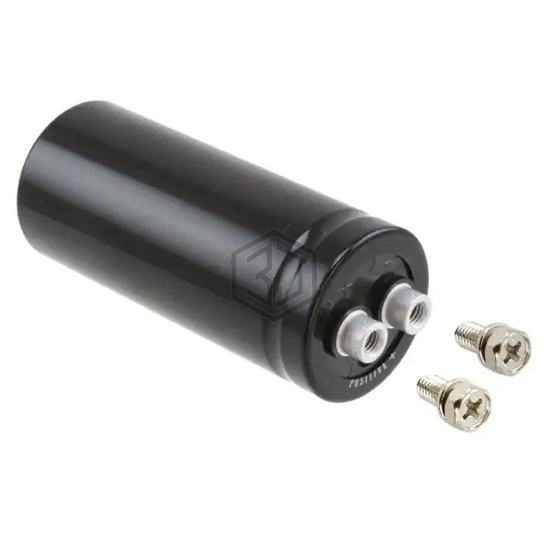

CAP ALUM 470UF 20% 400V SCREW
400LSQ470MNB36X83 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.714 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 3.386" (86.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451HPN471MA79C | Chemi-Con | CAP ALUM 470UF 20% 450V SCREW CH | 92% | View |
| MAL210258471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 385V SCREW | 89% | View |
| MAL210226471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 400V SCREW | 88% | View |
| ALS81H471DB450 | KEMET | CAP ALUM 470UF 20% 450V SCREW | 69% | View |
| ALS30A471DE400 | KEMET | CAP ALUM 470UF 20% 400V SCREW | 67% | View |
| PEH200YH3470MU2 | KEMET | CAP ALUM 470UF 20% 450V SCREW | 54% | View |
