CAP ALUM 3300UF 20% 400V SCREW

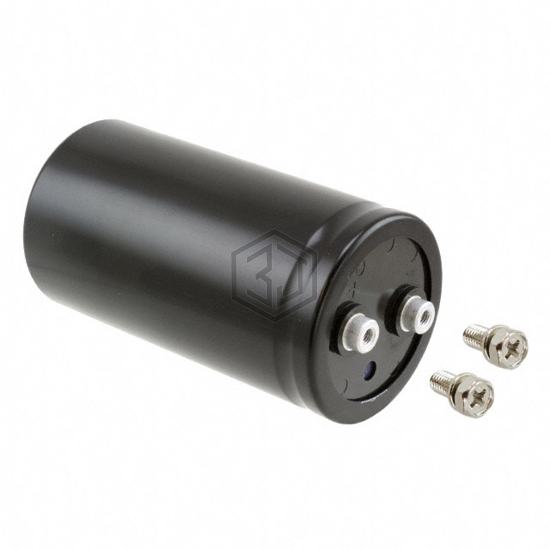

400LSQ3300MNB64X119 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,967
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.21 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 4.803" (122.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
400LSQ3300MNB64X119 is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNX2G332MSEGBB | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 95% | View |
| MAL210265332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 350V SCREW | 89% | View |
| E37F401CPN332MDA5U | United Chemi-Con | CAP ALUM 3300UF 20% 400V SCREW | 83% | View |
| ALS80A332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 80% | View |
| LQR2G332MSEGBN | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 80% | View |
| MAL210452332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 200V SCREW | 67% | View |
Submit your RFQ for 400LSQ3300MNB64X119 and get a quote within 24 hours.
