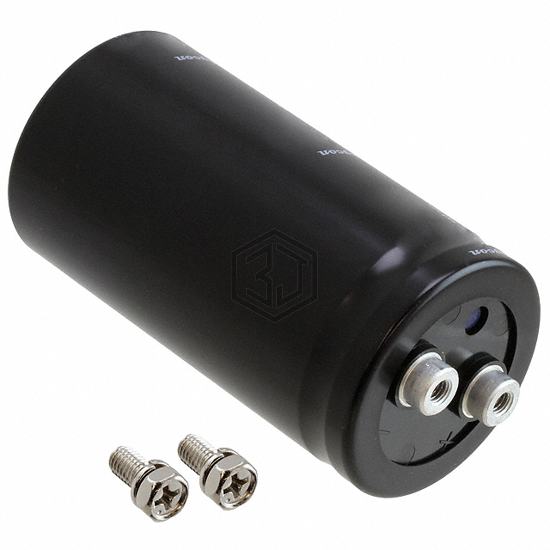

CAP ALUM 1500UF 20% 400V SCREW
400LSQ1500MNB51X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.664 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.976" (101.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 400LSQ1500MNB51X98 and get a quote within 24 hours.
