CAP ALUM 56UF 20% 400V RADIAL

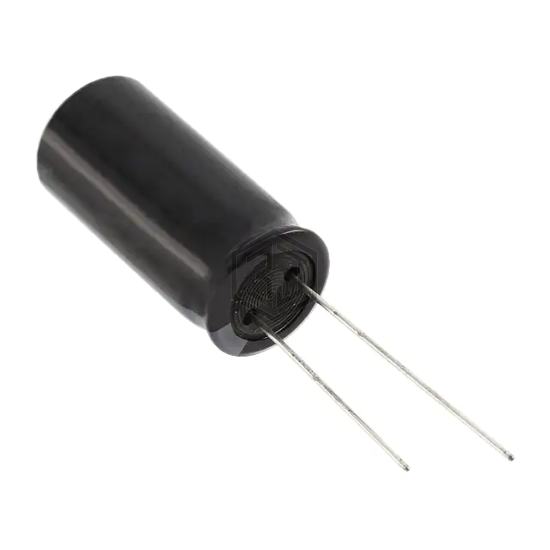

400BXW56MEFR16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 56UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,762
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL401ELL560MJ45S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL TH | 98% | View |
| EKXJ401ELL560MK35S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL | 96% | View |
| UCY2G560MHD3 | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 95% | View |
| EKXL451ELL560MK35S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL TH | 94% | View |
| EKWA421ELL560MJ50S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 91% | View |
| 400HXW56MEFR14.5X20 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 88% | View |
Submit your RFQ for 400BXW56MEFR16X20 and get a quote within 24 hours.
