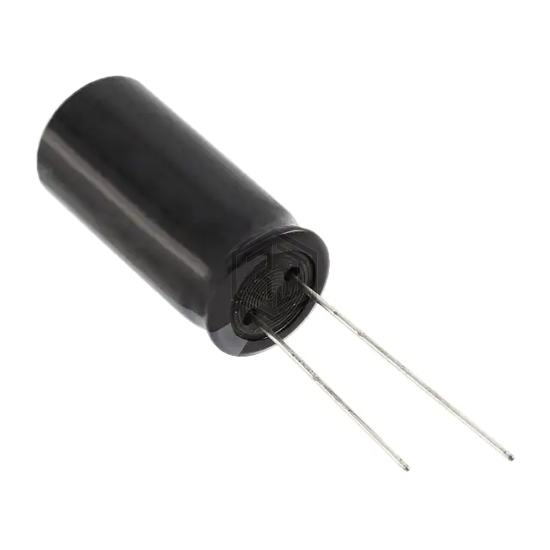

CAP ALUM 56UF 20% 400V RADIAL
400BXW56MEFC16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 56UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 1,368
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
400BXW56MEFC16X20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL421ELL560MK35S | United Chemi-Con | CAP ALUM 56UF 20% 420V RADIAL TH | 96% | View |
| EKXJ351ELL560ML20S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL | 95% | View |
| UPZ2W560MHD | Nichicon | CAP ALUM 56UF 20% 450V RADIAL | 92% | View |
| 450BXW56MEFR18X25 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 89% | View |
| 450HXW56MEFR10X45 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 84% | View |
| MAL215989569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 500V SNAP | 79% | View |
Submit your RFQ for 400BXW56MEFC16X20 and get a quote within 24 hours.
