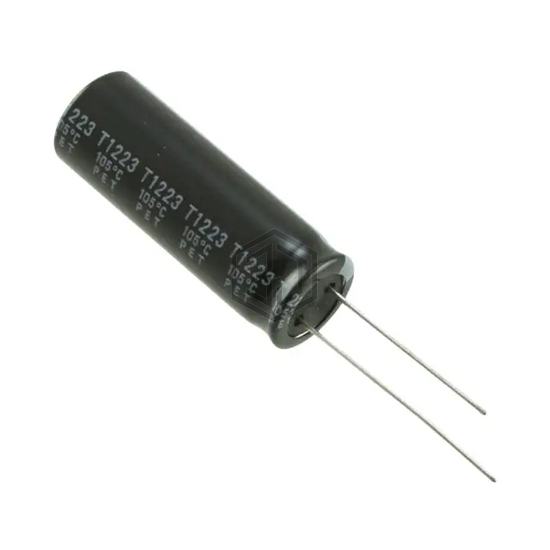

CAP ALUM 150UF 20% 400V RADIAL
400BXW150MEFR18X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 150UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 7,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 920 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219316151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 90% | View |
| 450HXW150MEFR16X40 | Rubycon | CAP ALUM 150UF 20% 450V RADIAL | 87% | View |
| UCY2E151MHD | Nichicon | CAP ALUM 150UF 20% 250V RADIAL | 83% | View |
| EKXJ221ELL151ML25S | United Chemi-Con | CAP ALUM 150UF 20% 220V RADIAL | 78% | View |
| ELXG251VNN151MP25U | United Chemi-Con | CAP ALUM 150UF 20% 250V SNAP | 70% | View |
| 200TXW150MEFR12.5X30 | Rubycon | CAP ALUM 150UF 20% 200V RADIAL | 61% | View |
Submit your RFQ for 400BXW150MEFR18X35 and get a quote within 24 hours.
