CAP ALUM 47UF 20% 400V RADIAL

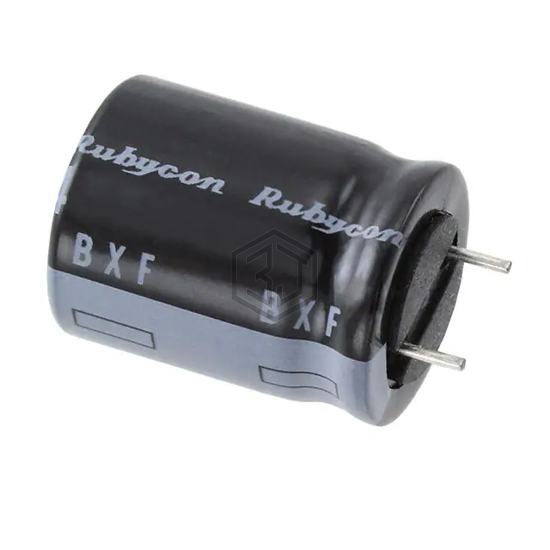

400BXF47MCE16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,310
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
400BXF47MCE16X20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCYW6470MHD3TN | Nichicon | CAP ALUM 47UF 20% 420V RADIAL | 93% | View |
| EKXJ451ELL470MUN3S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL | 93% | View |
| 350CFX47M16X20 | Rubycon | CAP ALUM 47UF 20% 350V RADIAL | 91% | View |
| 450TXW47MEFR12.5X40 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 84% | View |
| PZ2W470MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 73% | View |
| MAL214264793E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 70% | View |
