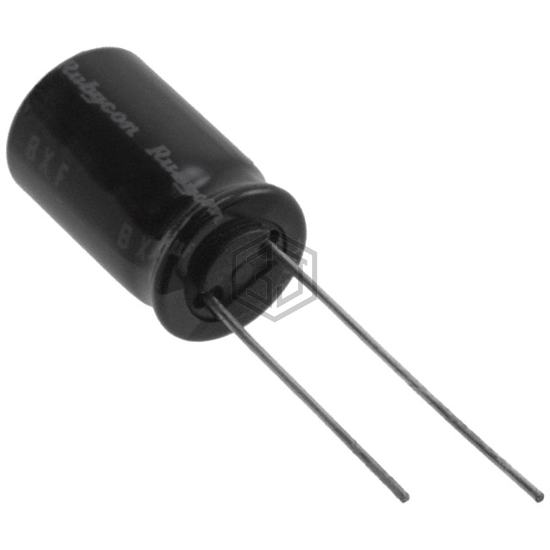

CAP ALUM 12UF 20% 400V RADIAL
400BXF12MEFC10X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 12UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,550
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
400BXF12MEFC10X16 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW12MEFR10X16 | Rubycon | CAP ALUM 12UF 20% 400V RADIAL | 93% | View |
| EKXJ421ELL120MJ20S | United Chemi-Con | CAP ALUM 12UF 20% 420V RADIAL | 92% | View |
| EKXJ451ELL120MJ20S | United Chemi-Con | CAP ALUM 12UF 20% 450V RADIAL | 90% | View |
| EKXJ351ELL120MJ16S | United Chemi-Con | CAP ALUM 12UF 20% 350V RADIAL | 89% | View |
| UCY2G120MPD1TD | Nichicon | CAP ALUM 12UF 20% 400V RADIAL | 88% | View |
| UCY2G120MPD | Nichicon | CAP ALUM 12UF 20% 400V RADIAL | 88% | View |
