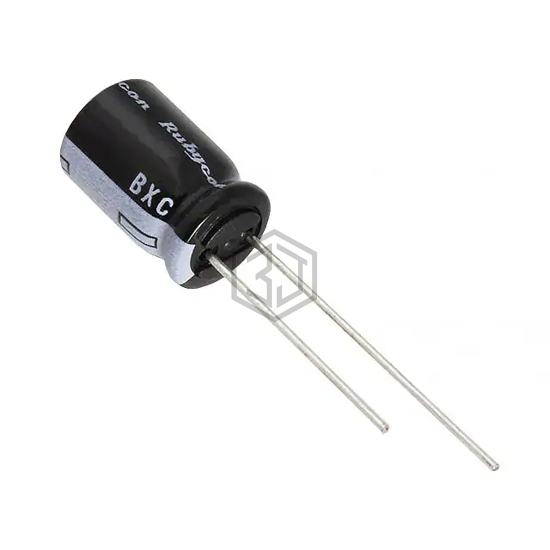

CAP ALUM 2.2UF 20% 400V RADIAL
400BXC2.2MEFCT78X11.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 3,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43858G4225M001 | EPCOS - TDK Electronics | CAP ALUM 350V POLAR | 98% | View |
| B43858B5225M008 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 93% | View |
| 400BXC2R2MEFC10X12.5 | Rubycon | CAP ALUM 2.2UF 20% 400V RADIAL | 81% | View |
| 400LLE2.2MEFCTA8X11.5 | Rubycon | CAP ALUM 2.2UF 20% 400V RADIAL | 76% | View |
| MAL215266228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 400V RADIAL | 73% | View |
| PF1H2R2MPN0511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
Submit your RFQ for 400BXC2.2MEFCT78X11.5 and get a quote within 24 hours.
