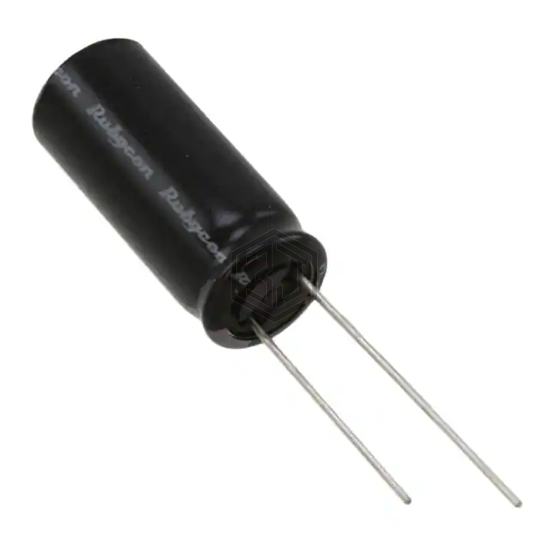

CAP ALUM 330UF 20% 35V RADIAL
35ZT330M10X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,647
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 729 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D337G030DL5 | Vishay Sprague | CAP ALUM 330UF 30V AXIAL | 90% | View |
| B41896C7337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 80% | View |
| EEU-TP1E331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 76% | View |
| EEU-TA1H331S | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
| UBT1V331MPD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 68% | View |
| UBW1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for 35ZT330M10X23 and get a quote within 24 hours.
