CAP ALUM 680UF 20% 35V RADIAL

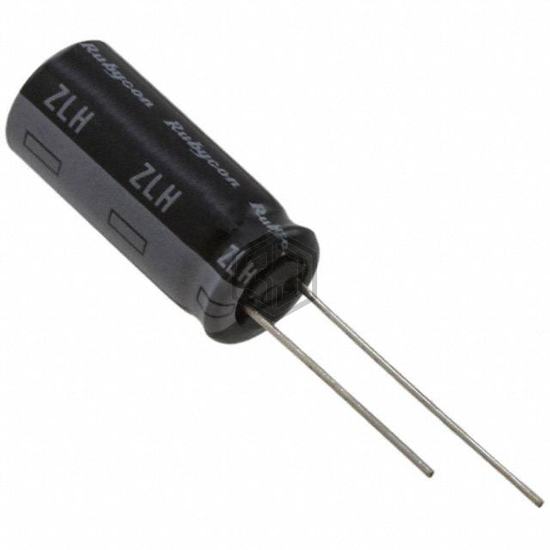

35ZLH680MEFCT810X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,216
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.238 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.25 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE250ETD681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 25V RADIAL | 81% | View |
| 381LX681M315A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 315V SNAP | 70% | View |
| 381LX681M180H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 180V SNAP | 70% | View |
| LGR2D681MELB35 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 68% | View |
| LGN2C681MELA25 | Nichicon | CAP ALUM 680UF 20% 160V SNAP | 68% | View |
| LGN2D681MELB25 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 67% | View |
Submit your RFQ for 35ZLH680MEFCT810X23 and get a quote within 24 hours.
