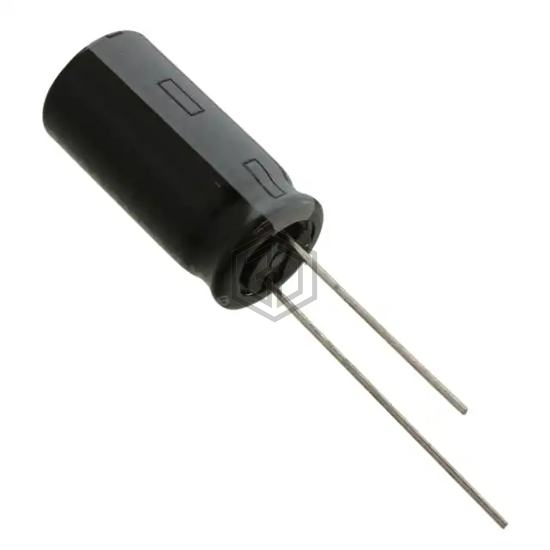

CAP ALUM 560UF 20% 35V RADIAL
35ZLH560MEFCT810X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.078 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY350ELL561ML15S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 100% | View |
| 35ZLJ560M10X20 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 88% | View |
| EKYC250ELL561MJC5S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 65% | View |
| LKX2E561MESC25 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 61% | View |
| 180MXC560MEFCSN22X40 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 59% | View |
| B41858C5567M8 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 25V RADIAL | 59% | View |
Submit your RFQ for 35ZLH560MEFCT810X20 and get a quote within 24 hours.
