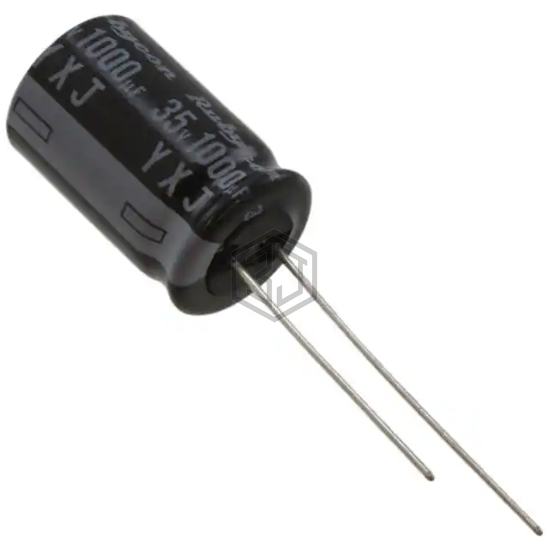

CAP ALUM 1000UF 20% 35V RADIAL
35YXJ1000M12.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.425 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TA1E102S | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 89% | View |
| 63RX301000M16X31.5 | Rubycon | CAP ALUM 1000UF 20% 63V RADIAL | 80% | View |
| ELXV250ELL102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 78% | View |
| 50YXH1000MEFCGC16X25 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| MAL224658102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 73% | View |
| RF1C102MP51016E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
