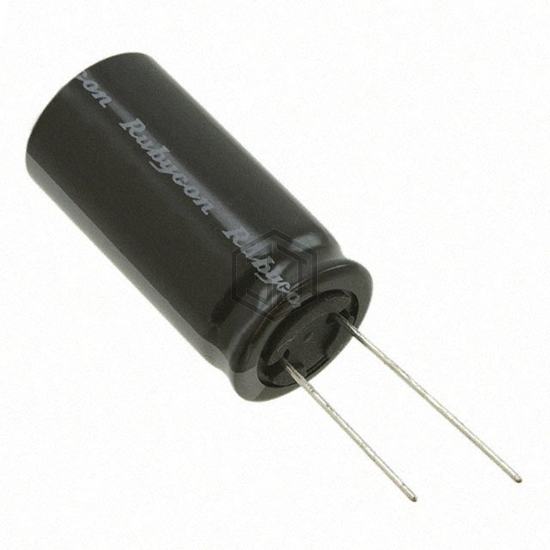

CAP ALUM 3300UF 20% 35V RADIAL
35YXG3300MEFCGC18X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.954 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35YXH3300MWJ16X40 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 98% | View |
| EGPA250ELL332MU35S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 81% | View |
| MAL216257332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 78% | View |
| 35YXF3300MEFCGC18X35.5 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 69% | View |
| 50MXG3300MEFCSN20X35 | Rubycon | CAP ALUM 3300UF 20% 50V SNAP | 65% | View |
| B41505F7338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V SNAP | 64% | View |
Submit your RFQ for 35YXG3300MEFCGC18X35.5 and get a quote within 24 hours.
